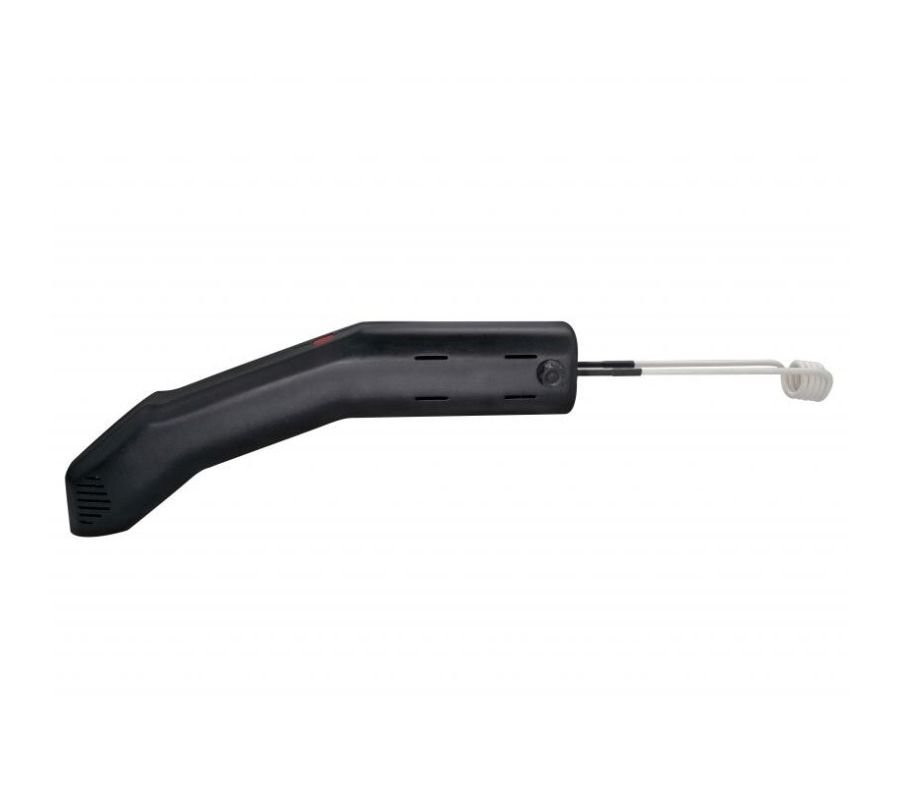

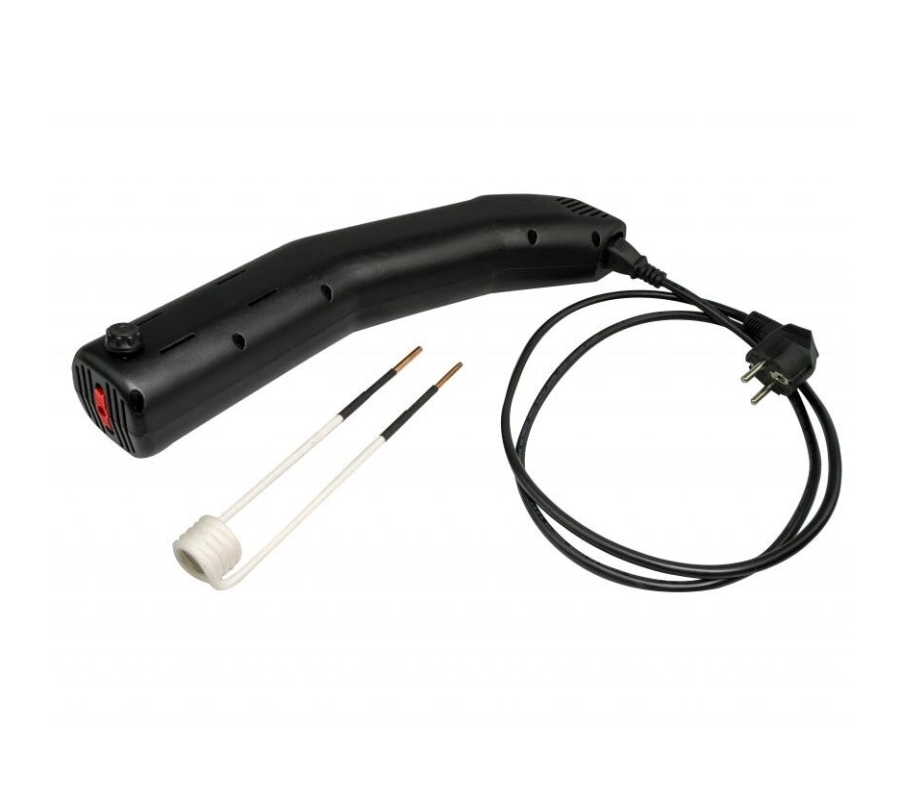

Induction heater 1.2kW with coil set (DCI12PKW) (Code: DCI12PKW)

Prekių nuotraukos skirtos tik iliustraciniams tikslams, originalių produktų spalvos, užrašai, parametrai, matmenys, dydžiai, funkcijos, ir/ar bet kurios kitos savybės dėl savo vizualinių ypatybių gali atrodyti kitaip negu realybėje, todėl prašome vadovautis prekių savybėmis, kurios nurodytos prekių aprašymuose. Kilus klausimams, visada laukiame Jūsų skambučio telefonu +370 683 62 800 arba el. paštu irankiugamalt@gmail.com.

Price: 426.75 EUR

Quantity:

+ - Užduoti klausimą apie produktą Click to collapse

Elpaštas:This email address is being protected from spambots. You need JavaScript enabled to view it.

Tel.: +370 683 62800

The kit accessories provide a wide range of additional applications

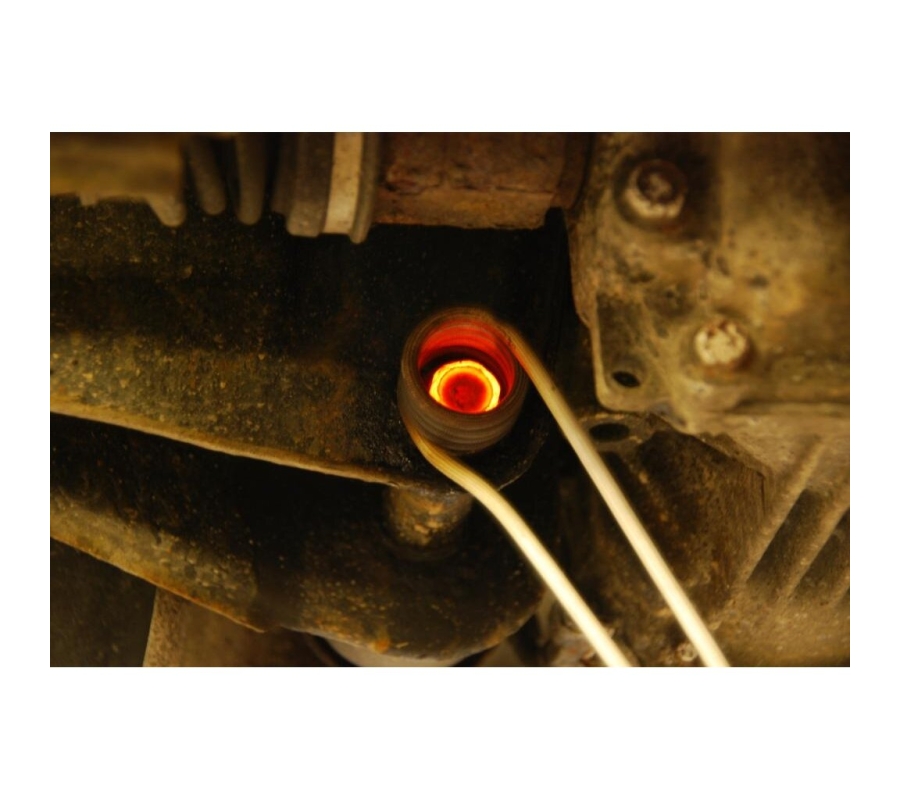

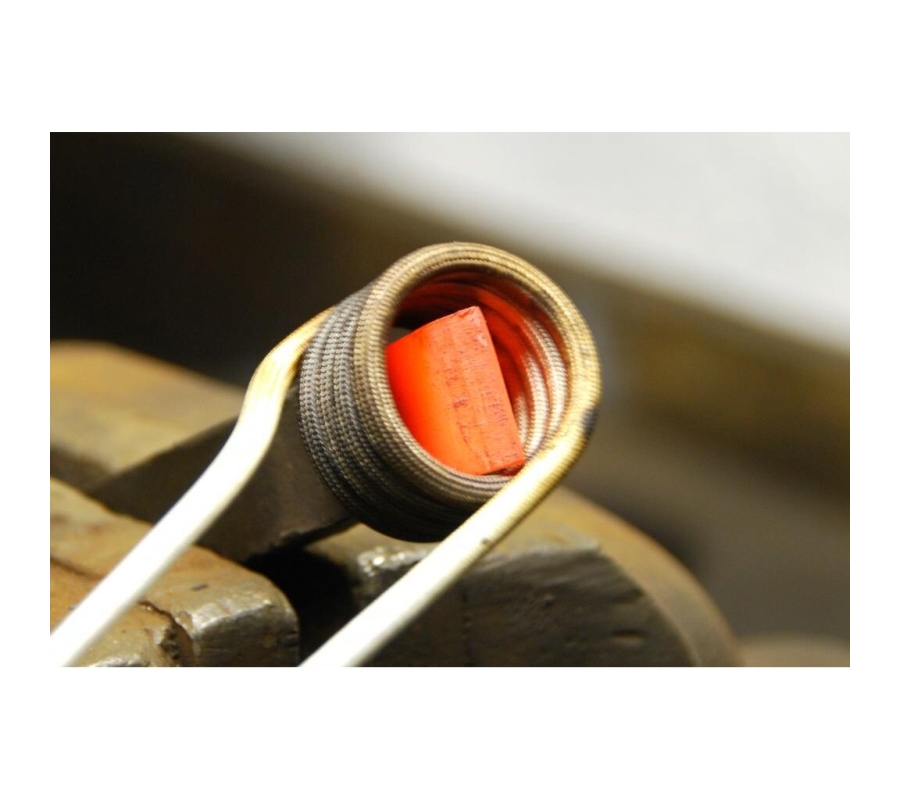

Used to release/disjoint screws, bearings, and different glued and corroded joints by local heating
It replaces heating by oxyacetylene and butane-propane flame
Voltage 220V, 50Hz
Power supply cable 2 m
Coil gun holder 2 m
Power 1.2 kW / 1.8 kVA
Consumption 8 A
Ingress Protection Code IP20
Operating frequency 40 - 60 kHz, automatic adjustment
Equipment of protection class I
LED illumination in front of the induction coil
Protection against overload of the source and short circuit of the coil
Fan cooling
Flame- and spark-free heating
Dimensions 375 x 65 x 85 mm
Set includes 4 pcs heating coils (1 pcs flexible, 1pc flat, and 2 pcs fixed coils 19, 26 mm)
Weight 2 kg
12 month warranty

The DCI-12 is designed so that it can heat for up to 20 minutes when started cold under normal conditions with an ambient temperature of 25°C.
However, various influences may occur in use that result in a shorter heating time
That is why the device working cycle information is approximate only and always depends on the working conditions
The recommended working cycle is 10 minutes of heating followed by a minute of cooling
