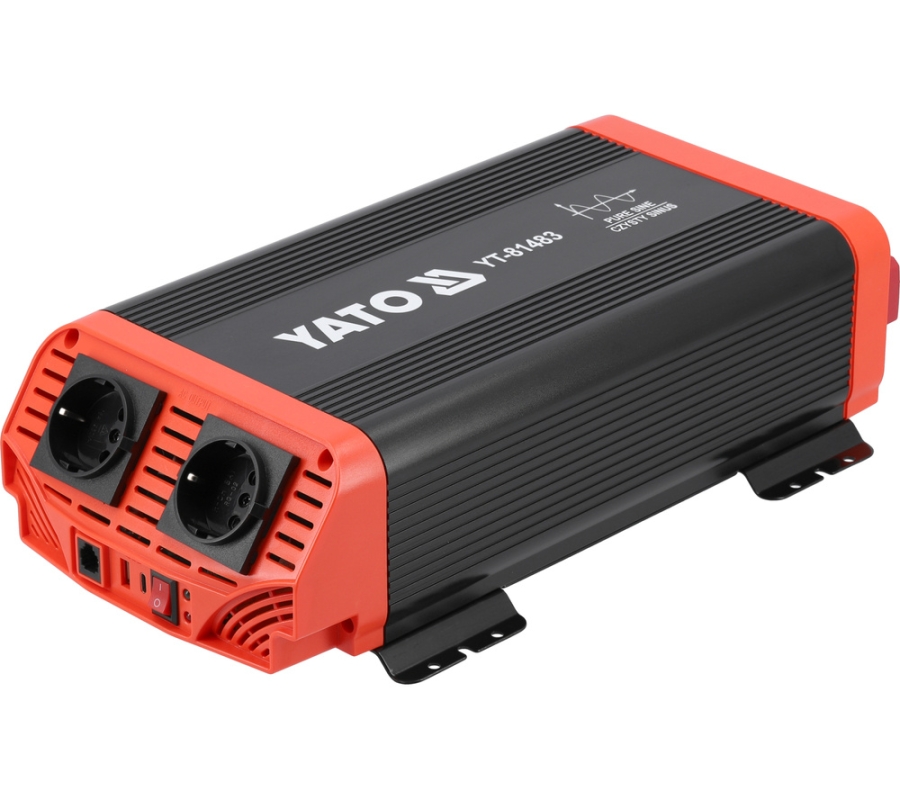

Pure sine wave voltage converter 24V/230V 1000/2000W (G17015) (Code: G17015)

Voltage converter 24V/230V 1000/2000W - pure sine.

Voltage converters are designed to change the direct current from batteries with a voltage of 24V into alternating current with a voltage of 230V. The device is equipped with a USB socket for powering and charging mobile devices.

Sine wave converters, unlike classic AC/DC converters, produce an alternating voltage from a sine wave at the output (the same as in the power grid). This type of converter is perfect for powering devices such as power tools, pumps, electronics, and household appliances.

Products features:

• pure sine wave voltage converter
• perfect for powering devices such as refrigerators, TV sets, computers/laptops, etc.
• ideal for cars and campers
• it has a USB socket for powering and charging mobile devices
• equipped with an F-type socket and a universal socket
• battery connection cable included

Technical specification:

Input voltage data (DC)

• Maximum current voltage: 15,5V
• Nominal input voltage: 12V
• Rated voltage: 12V
• Minimum supply voltage: 10,5V
• Input voltage range: 10,5-15,5V

Output voltage data (AC)

• Maximum output power: 2000W
• Continuous output power: 1000W
• Output voltage range: 220-250V
• Nominal voltage: 220, 230, 240V
• Voltage shape: pure sine wave
• Voltage frequency: 50,60 Hz
• Efficiency: 93%
• USB Port: 5V/500mA

Product data

• Dimensions (H x W x L): 342x166x90 mm
• Net weight: 2,85 kg
• Transformer: high-frequency transformer
• Cooling: fan
• Degree of protection (IP): IP20
• Working temperature: 0-40°

Safety features

• Fuse: 2 x 30A
• Protections: Reverse polarity protection, low voltage protection, overvoltage protection, overload protection, short circuit protection, overheating protection
