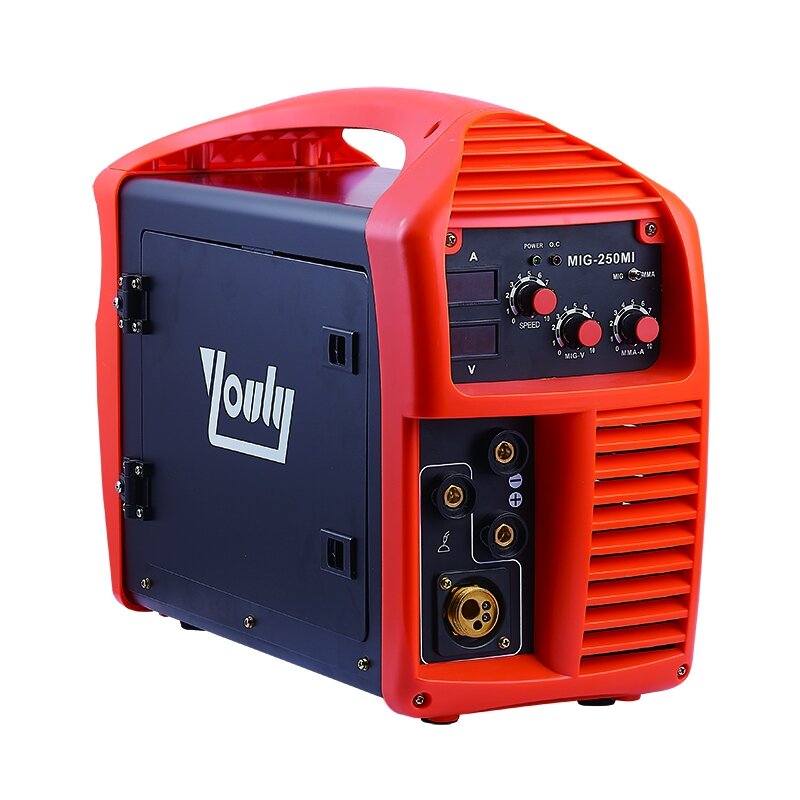

Multifunctional inverter welding machine semi automatic (IGBT), MIG/MAG/MMA (YLMIG250MI) (Код: YLMIG250MI-SNL)

Function: welding with wire Ø0.6 - 1.0 mm or electrode Ø1.6 - 5 mm
With thermal protection
In the set included: power supply cable 2 m, MIG / MAG wire torch 2.5 m, MMA 2 m, cable with ground terminal 2 m, welding mask and brush

IGBT - Electrically Insulated Bipolar Transistor is a semiconductor device that is used in powerful electronics because of the high benefits of bipolar transistors (eg good transfer, high blocking voltage, strength of welding equipment) and field transistors.
Supply voltage 220 V, 50/60 Hz
Duty cycle 60 %
Rated input current MIG: 28 A; MMA: 32 A
Output current MIG: 50 - 250 A; MMA: 20 - 250 A
Output voltage MIG: 20.8 - 26.5 V; MMA: 20.8 - 30 V
Efficiency 85 %
Welding wire Ø 0.6 - 1.0 mm

Gas-free welding mode
Protection grade IIP21
Max size of the wire reel Ø150 mm
Wire feed adjustment range 2.5 - 13 m/min
Wire spool diameter up to 150 mm
Dimensions 520 x 240 x 430 mm
Weight 16 kg
CE conformity
