Sodo traktorius benzininis | motoblokas | 420 CM3 (YT-85851) (Kodas: YT-85851)

YT-85851
SINGLE-AXLE TRACTOR 420 CM3
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Power
9 kW
12.24 HP
Engine capacity
420 cm³
Revolutions
3600 min⁻¹
Power take-off shaft (PTO) revolutions
990 min⁻¹
Fuel type
unleaded petrol E10
Fuel tank capacity
6.5 l
Oil type
SAE 15W-40 (engine), GL-5 SAE 80W-90 (gearbox)
Oil tank capacity
1.1 l
Gearbox
3 forward gears, 2 reverse gears
Clutch type
dry, with differential lock
Starting type
manual, electric
Type drive
manual
Voltage
12 V d.c.
Battery type
lead-acid
Battery capacity
6500 mAh

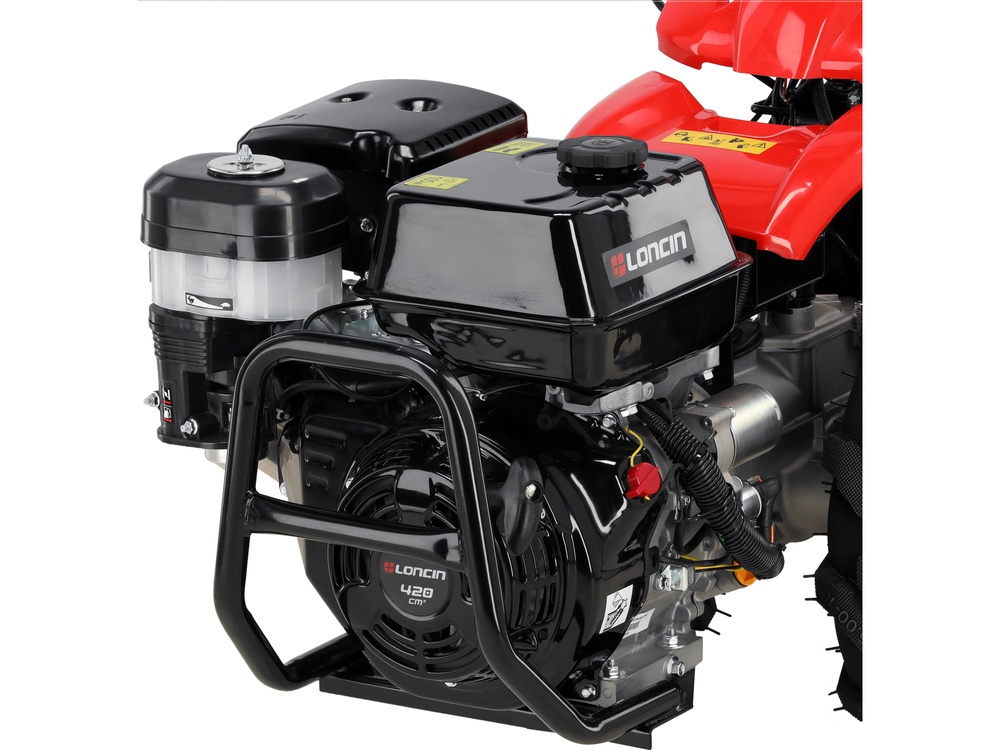

Engine type
LONCIN G420FD
Spark plug type
F7RTC
Lubrication system
oil bath
Cooling
air
Steering wheel
adjustable in height and sides, with the possibility of setting at an angle of 180° for full control over the machine
Wheels
yes
Number of wheels
2
Wheel type
pneumatic
Wheel diameter
500 mm
Number of cylinders in the engine
1
Number of strokes in the engine
4
Sound pressure
85.8 ± 3.0 dB(A)
Sound power
104.6 ± 2.23 dB(A)
Vibrations
5.91 ± 1.5 m/s²
Weight
110 kg
Compatible z(e)
YT-85860, YT-85861, YT-85862, YT-85863, YT-85864, YT-85865, YT-85866, YT-85867, YT-85868, YT-85869, YT-85870, YT-85872, YT-85873, YT-85874, YT-85875, YT-85876, YT-85877, YT-85878, YT-85880, YT-85881
Symbol
YT-85851 The single-axle tractor is a reliable agricultural machine ideal for various works on the farm, garden and green areas. Thanks to its solid construction, modern technological solutions and efficiency of up to 3.2 hours on a full tank of fuel, it ensures efficient and comfortable work even in difficult conditions. Parameters: LONCIN G420FD engine Type: combustion, four-stroke
Power: 9 kW
Displacement: 420 cm3
Max. torque: 3600 rpm
PTO speed: 990 rpm
Starting: manual and electric
Spark plug type: F7RTC
Fuel type: unleaded petrol E10
Oil type: SAE 15W-40
Gear oil type: GL-5 SAE 80W-90
Fuel tank capacity: 6.5 l
Oil pan capacity: 1.1 l
Battery capacity: 6.5 Ah, 12 V
All-wheel drive and direct power transmission provide excellent traction and durability
Gearbox: 3 forward and 2 reverse gears, allowing you to adjust the speed to the job at hand
Forward speed range:
1st gear 1.18 km/h
2nd gear 2.76 km/h
3rd gear 12.67 km/h
reverse speed range:
1st gear 1.24 km/h
2nd gear 2.91 km/h
steering wheel with height and angle adjustment up to 180° for full control over the machine
lubrication system: oil bath for long engine life
dry clutch with differential lock for better traction and stability
power take-off shaft (PTO) with a speed of 990 rpm at 3600 engine rpm ideal for cooperation with attachments
solid 20" wheels resistant to demanding terrain conditions
power steering makes maneuvering easier, increasing work comfort
dimensions: 104 × 61.5 × 77.5 cm
weight: 120 kg (gross)
The single-axle tractor ensures versatile use, and cooperation with other tools and attachments increases its functionality. The most popular devices that can be connected to it: plough – for ploughing and preparing the soil for sowing
rotary tiller – for loosening and leveling the soil
flail or scythe mower – for mowing grass, hay and vegetation in pastures
sweeper – for cleaning the surface from dust, leaves or snow
ridger – for forming ridges and cultivating root crops
cultivator – for loosening and aerating the soil
snowblower – for clearing snow from roads, driveways and pavements
digger – for digging up the soil and separating crops using rods
snowplough – for clearing snow from roads, driveways and pavements
Accessories available in the offer: metal wheels, PTO shaft extension, axle extension, pneumatic wheel weights, PTO shaft quick coupler and PTO shaft adapter. Recommended for purchase with the machine is a quick coupler for the PTO shaft (YT-85865) - it facilitates quick assembly of the device and reduces the risk of damaging the pins.
