Suvirinimo kaukė | ASTRO DIGITAL TRUE COLOR (YT-73936) (Kodas: YT-73936)

YT-73936
ASTRO DIGITAL TRUE COLOR WELDING HELMET
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
ASTRO DIGITAL
Standard
EN 166:2001, EN 175:1997, EN ISO 16321-1:2021
Optical properties
1 / 1 / 1 / 1
Dark state
5-8, 9-13 DIN
Light state
4 DIN
Filter type
auto-darkening TRUE COLOR
Filter size
100x90 mm
Protective lens size
270x140 mm
Field of view
100x53 mm
Helmet material
PA6
Lens material
PC
4-point suspension
yes
Number of sensors arc
4
Filter test
yes
Functions
smooth tone transition (TRS), tack mode, grinding, cutting, welding
Darkness control
yes, external, smooth
Darkening time
0.1-0.4 ms
Brightening time
0.05-2 s
Delay control
yes, external, smooth
Automatic sensitivity control
yes
Automatic switch on/off
yes
UV/IR radiation resistance
yes, DIN 16
Power supply
solar cell, battery
Battery type
1x3V; CR2032
Low battery indicator
yes
Operating temperature range
-5 ~ +55 ˚C
Storage temperature
-20 ~ +70 ˚C
Application
welding
Welding method
MMA, MIG, MAG, TIG
Symbol

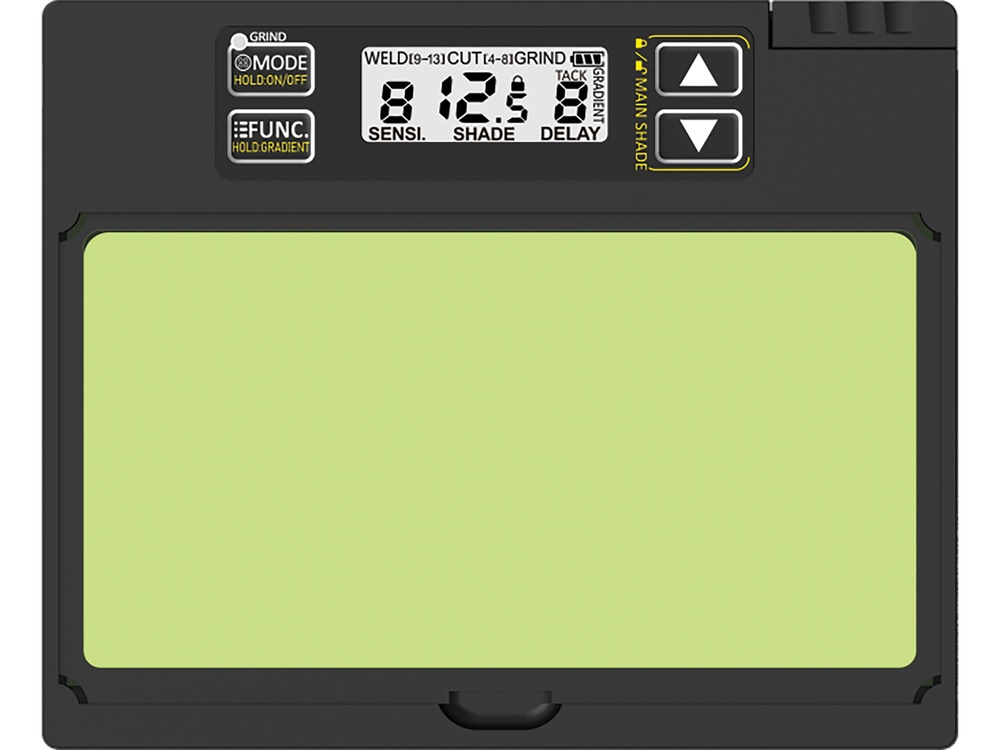

YT-73936 Welding helmet with digitally controlled true color auto-darkening filter. Allows to observe the welding arc in real colors. It has additional functions such as TRS or tack mode and guarantees maintaining precise settings even after many years of use. It has 9 levels of darkness and sensitivity to the intensity of the light source. Allows to change the switching time from dark to light in the range of 0.05 to 2 seconds. Characteristics: certified welding filter in the highest optical class 1 provides a large field of view of 100 x 53 mm and protection against UV/IR radiation at the DIN 16 level
protection of the filter against spatter with a durable polycarbonate lens
four arc sensors and precise electronics detect an electric arc from TIG with an intensity of only 5 A
powered by a solar cell and a CR2032 battery
the tack mode function makes the filter change from a dark state to an intermediate state (DIN5 shade) during spot welding and if another spot weld is not started within 2 seconds, only then does it change to a light state (DIN 4)
the TRS function allows for a smooth transition from a dark state to a light state - the field of view brightens relatively slowly and smoothly
both functions significantly reduce eye fatigue, which will be appreciated by amateur and professional welders
the filter has a grinding mode, allowing the helmet to be used as a means of personal protection, e.g. against sparks from cutting or grinding metal
the TEST button allows you to check the correct operation of the self-darkening function - TEST in the digital filters of YATO welding helmets starts the testing procedure for each degree of darkening; the routine of checking the correct operation of the filter each time will help protect the eyes and health of the operator
the helmet shell is made of durable and non-flammable PA plastic

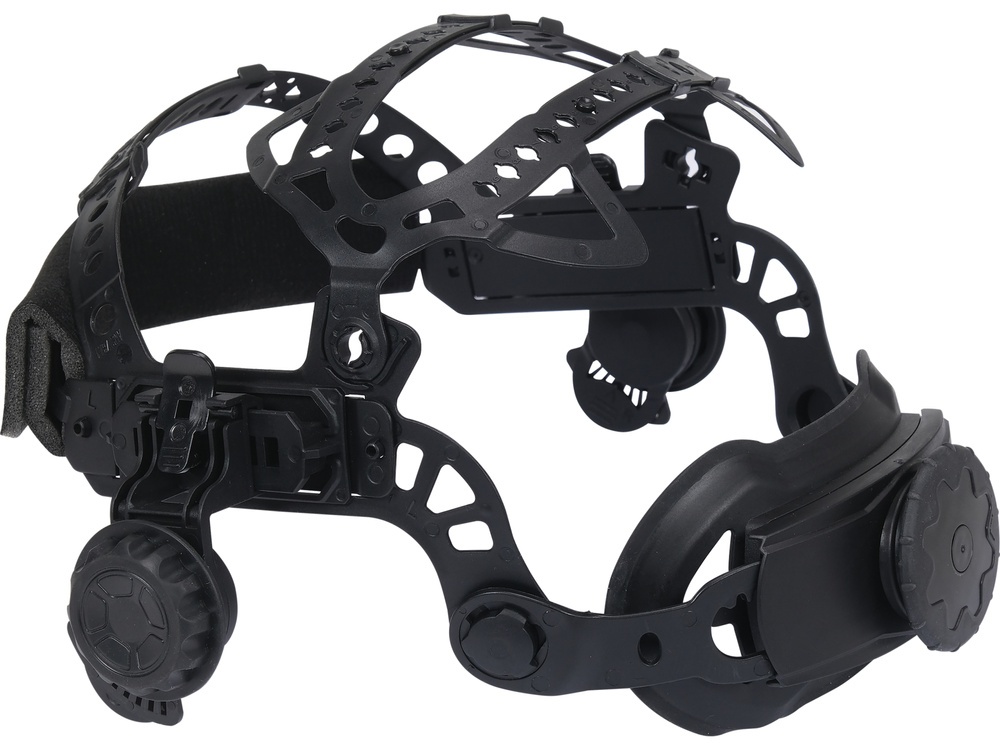

the four-point harness, sweatband, size and working angle adjustment system allow you to adjust the position of the helmet to individual requirements and guarantee high comfort of work
